Ringlock Scaffolding
Khoom npe:Ringlock Scaffolding
Txheem:AS / NZS1576.3: 2015
Nto Kho:Kub dipped galvanized
Khoom siv:Q235 Hlau, Q355 Hlau
Qho loj: Ringlock tus qauv: φ48.3 * 3.25mm thiab AV60 * 3.25mm
Ringlock Ledger: φ48.3 * hli lossis customized
Ringlock Cab Tubrogonal Sharge: φ48.3 * 2.75 hli lossis customized
Ringlock Accessories: Ringlock Rosette, Ringlock luger lawb, Ringlock Pins, Twge Coupler, Spigot, Paus Jack, Paus Nkaus
Kev piav txog:Lub ringlock scaffolding yog tsa los ntawm prepabricated cov tog ntawm Ringlocks, Ringlock Ciamoos, thiab kab rov tav-{0}} lub zog steel qauv. Mas xauv txhua tus mej zeej kaw ntom nti - Xauv Rosette los muab cov qauv kev txhawb nqa ruaj khov.
Ringlock Scaffolding Systems
Lub ringlock scaffolding system tuaj yeem hloov kho qhov siab, cov qauv, thiab txheej txheem ntawm scaffolding raws li kev tsim kho cov kev tsim kho thiab cov chaw ua haujlwm.
Ringlock Cheebtsam
Lub Ringlock System Scaffold yog npaj los ntawm Prepabricated Cheebtsam ntawm Ringlocks, Ringlock Ciamoos, thiab kab rov tav-{0}} lub zog steel qauv.
Ringlock Scaffolding Txuj
 |
 |
 |
|
|
Khoom |
Q355 Hlau |
||
|
Nto Kho |
Kub dipped galvanized |
||
|
Qho loj |
Ib60 * 3.25mm, φ48.3 * 3.25mm |
||
|
Siv tau ntev |
500/1000/1500/2000/2500/3000 hli |
||

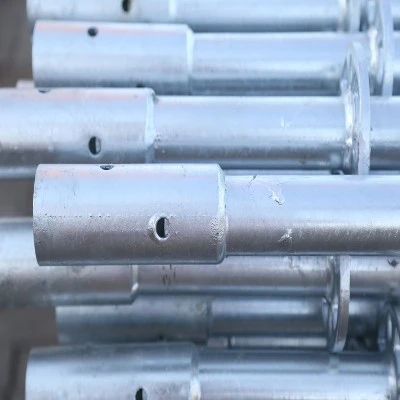

Ringlock qauv / ntsug nrog spigot
 |
 |
 |
|
Yam khoom No. |
Siv tau ntev |
Theoretic hnyav |
 |
|
Yfrs 48 050 |
0.5 m / 1'7" |
3.2 KG / 7.04 IBS |
|
|
Yfrs 48 100 |
1.0 m / 3' 3" |
5.5 kg / 12.1 lbs |
|
|
Yfrs 48 150 |
1.5 m / 4'11" |
7.8 kg / 17.16 lbs |
|
|
Yfrs 48 200 |
2.0 m / 6' 6" |
10.1 kg / 22.22 lbs |
|
|
Yfrs 48 250 |
2.5 m / 8' 2" |
12.4 kg / 27.28 lbs |
|
|
Yfrs 48 300 |
3.0 m / 9' 9" |
14.6 kg /32.1lbs |
Ringlock Scaffolding Ledger
Khoom siv: Q235 steel
Nto Kho: Kub dipped galvanized
Qhov loj me: φ48.3 * 2.75 hli lossis kho los ntawm cov qhua tuaj noj mov
 |
 |
|
Ringlock coj ntau thiab tsawg rau kev lag luam European
|
Yam khoom No. |
Siv tau ntev |
Theoretic hnyav |
 |
|
Yfl 48 039 |
0.39 m / 1' 3" |
1.9 kg / 4.18 lbs |
|
|
Yfl 48 050 |
0.50 m / 1' 7" |
2.2 kg / 4.84 lbs |
|
|
Yfl 48 073 |
0.732 m / 2' 5" |
2.9 kg / 6.38 lbs |
|
|
Yfl 48 109 |
1.088 m / 3' 7" |
4.0 kg / 8.8 lbs |
|
|
Yfl 48 129 |
1.286 m / 4' 3" |
4.6 KG / 10.12 LBS |
|
|
Yfl 48 140 |
1.40 m /4' 7" |
5.0 kg / 11.00 lbs |
|
|
Yfl 48 157 |
1.572 m / 5' 2" |
5.5 kg / 12.10 lbs |
|
|
Yfl 48 207 |
2.072 m / 6' 9" |
7.0 kg / 15.40 lbs |
|
|
Yfl 48 257 |
2.572 m / 8' 5" |
8.5 KG / 18.70 lbs |
|
|
Yfl 48 307 |
3.07 m / 10' 1" |
10.1 kg / 22.22 lbs |
Ringlock coj qhov ntau thiab tsawg rau South East Asia thiab Africa lag luam
|
Yam khoom No. |
Siv tau ntev |
 |
|
Yfl 48 060 |
0.6 m / 1' 11" |
|
|
Yfl 48 090 |
0.9 m / 2' 11" |
|
|
Yfl 48 120 |
1.2 m / 3' 11" |
|
|
Yfl 48 150 |
1.5 m / 4' 11" |
|
|
Yfl 48 180 |
1.8 m / 5' 11" |
|
|
Yfl 48 210 |
2.1 m / 6' 6" |
|
|
Yfl 48 240 |
2.4 m / 7' 10" |
Ringlock coj ntau thiab tsawg rau kev ua lag luam Singapore
|
Yam khoom No. |
Siv tau ntev |
 |
|
Yfl 48 061 |
0.61 m / 2' |
|
|
Yfl 48 091 |
0.914 m / 3' |
|
|
Yfl 48 121 |
1.219 m / 4' |
|
|
Yfl 48 152 |
1.524 m / 5' |
|
|
Yfl 48 182 |
1.829 m / 6' |
|
|
Yfl 48 213 |
2.134 m / 7' |
|
|
Yfl 48 243 |
2.438 m / 8' |
|
|
Yfl 48 304 |
3.048 m / 10' |
Ringlock ledgers suav nrog u {- hom ledgers thiab o- hom ledgers
| Ringlock Ledger O -} hom | Ringlock ledgers u - hom | |
| Qauv qauv | Nws muaj lub voj voos kaw | Zoo li tus 'U' nrog qhib ntawm ob qho kawg. |
| Txoj kev sib txuas | Feem ntau nws ncaj qha txuas rau ntawm lub pov thawj, nrog tus kuj sib txuas. | Kev sib txuas rau ncej lossis lwm yam los ntawm kev qhib siab yuav xav tau cov fastenters lossis xauv rau kev kho kom yooj yim. |
| Ruaj khov | Vim nws lub ntsej muag kaw, nws muaj thaj chaw tiv tauj loj dua nrog Upright Ncej thiab tej zaum yuav muaj kev ruaj khov zoo dua rau qee yam. | Muaj qee kis, tej zaum yuav muaj qee qhov kev pheej hmoo ntawm kev tshee vim yog txoj kev sib txuas ntawm kev qhib. |
| Txhim kho thiab rho tawm | Thaum lub sij hawm installation, nws yog ib qho tsim nyog los ntxig cov ncej ncaj, uas tej zaum yuav yog siv zog ua kom dissassble. | Thaum lub sij hawm teeb tsa thiab disassembly, muaj kev qhib siab yuav ua rau txoj haujlwm ua haujlwm yooj yim. |
Ringlock Scaffolding Cabonal
 |
 |
 |
Ringlock Cab Tubrogonal Brace / Bay BRACES
Cov Khoom Siv: Q195 Kev Kho Mob Hlau / Nto Deg: Kub Dipped Galvanized
Qhov loj me: φ48.3 * 2.75 lossis customized los ntawm cov neeg siv khoom
|
Yam khoom No. |
Bay ntev |
Bay Dav |
Theoretic hnyav |
 |
|
Yfdb 48 060 |
0.6 m |
1.5 m |
3.92 kg |
|
|
Yfdb 48 090 |
0.9 m |
1.5 m |
4.1 kg |
|
|
Yfdb 48 120 |
1.2 m |
1.5 m |
4.4 kg |
|
|
Yfdb 48 065 |
0.65 m / 2' 2" |
2.07 m |
7.35 kg / 16.2 lbs |
|
|
Yfdb 48 088 |
0.88 m / 2' 10" |
2.15 m |
7.99 kg / 17.58 lbs |
|
|
Yfdb 48 115 |
1.15 m / 3' 10" |
2.26 m |
8.53 kg / 18.79 lbs |
|
|
Yfdb 48 157 |
1.57 m / 8' 2" |
2.48 m |
9.25 kg /20.35 lbs |
 |
 |
 |
Ringlock Scaffolding Accessories
Pib Tsho
Nto Kho: Kub dipped galvanized
|
Yam khoom No. |
Qho loj dav |
Qho ntev |
 |
|
Yfbc 48 024 |
Q235, φ48.3 * 3 hli |
0.24 m / 9.4 " |
|
|
Yfbc 48 030 |
Q235, φ48.3 * 3 hli |
0.30 m / 11.8 " |
|
|
Yfbc 48 028 |
Q345, φ57 * 3.5 hli |
0.28 m / 11 " |
|
|
Yfbc 48 037 |
Q345, φ70 * 3.5mm |
0.37 m / 14.57 " |
Ntiv nplhaib rosette
Ringlock Ledger Taub Hau
Spigot
Tus Npauj Npaug Coupler
Puag Nkaus
Ringlock pins
Ringlock Stace Kawg
Yuav ua li cas ringlock scaffolding ntim
Rau cov tswv cuab ntev dua xws li Ringlock tus qauv, siv cov xov hlau steel, cov xov hlau, hlua, lossis cov kab tshwj xeeb tshwj xeeb.
Txhawm rau yooj yim lub nplhaib scaffolding accessories, xws li Ringlock Rosette, duab los qhia los yog thawv ntoo tuaj yeem siv rau kev sib tsoo thiab hnav.
Rau cov cheebtsam loj dua, xws li cov txheej txheem txhuam hniav, tiv thaiv cov txheej xws li cov yeeb yaj kiab yas lossis npuas tuaj yeem siv tau rau sab nraud.
 |
 |
 |
 |
 |
Ringlock scaffolding yog hom modular scaffolding nrog lub xov tooj twj sib txuas. Nws yog ib qho ntawm cov scaffolds feem ntau dav siv hauv kev lag luam thiab kev tsim kho hnyav. Lub Ringlock System Scaffold yog npaj los ntawm Prepabricated Cheebtsam ntawm Ringlocks, Ringlock Caboronal, ua los ntawm high- lub zog steel qauv.
Ringlock Scaffolding Yam khoom
 |
 |
 |
|
Daim Ntawv Thov ntawm Ringlock Scaffolding
Hauv kev tsim kho, ringlock scaffolding yog siv rau kev tsim kho ntawm high-}} }ອນ vaj tse, sab nrauv cov vaj tsev, thiab lwm qhov chaw; Piv txwv, tiling thiab pleev xim rau sab nrauv phab ntsa ntawm siab -}}} Rose tsev
Hauv kev tsim kho choj, ringlock scaffolding pab rau kev tsim kho thiab cov cuab yeej installation ntawm choj piers thiab lawj;
Muaj Kev Siv Cog Khoom Siv, Ringlock Scaffolding Pabcuam Cov Neeg Ua Haujlwm Hauv Kev Tsim Kho Vaj Tse thiab Txhim Kho Cov Khoom Loj;
Thaum lub sij hawm kev tsim kho cov kev ua si sib tw, Ringlock Scaffolding kev pab txhawb kev txhim kho thiab vuam ntawm cov chaw tsim qauv thiab dai kom zoo nkauj ntawm cov neeg tuaj saib lub rooj
Hauv cov chaw hauv nroog, khawb av hauv av tuaj yeem siv tau, thiab txhim kho txoj kev teeb pom kev zoo thiab cov ntawv tshaj tawm kuj yuav tsum tau siv cov scaffolding ringlock
Nyob rau theem kev tsim kho, ringlock scaffolding yog siv rau kev teeb tsa nce qib xws li kev hais kwv txhiaj thiab ua yeeb yam
Thaum lub caij nkoj kho, ringlock scaffolding ua haujlwm rau kev kho thiab pleev xim ntawm sab nraud ntawm cov nyom.
Hauv kev lag luam petrochemical, nws tseem yuav tsum tau sawv ntawm Ringlock scaffolding ua haujlwm ntawm cov roj roj roj loj thiab xa hluav taws xob
Vim li cas thiaj xaiv kojFA pab pawg
Tianjin Youfa steel yeeb nkab Thoob dav:, Ltd. Lub Kaum Ob Hlis 2020, kojFA pab pawg ntse tau tsaws rau ntawm cov yeeb nkab loj
Dhau li ntawm kev ua lag luam hauv Tianjin, tam sim no peb muaj 13 tus neeg ua haujlwm hauv Tangshan, Handan, Shaanxi thiab LIYANG. Tam sim no, muaj lig txog 9000 tus neeg ua haujlwm thiab 293 cov kab ntau lawm hauv 13 lub chaw tsim khoom, thiab 1 Tianjin tsoomfwv accreditSiness technology.
Tangshan Youfa tshiab lub tsev siv khoom tshiab Co., Ltd. Cov khoom lag luam suav nrog cov yeeb nkab scaffolding, ntiv nplhaib {{3} xaim hluav taws xob scaffolding system, couple} Cov khoom siv hlau nplaum thiab cov khoom siv hlau zoo li ntsia hlau Puag Jack thiab ULub taub hau Jack.all Scaffolding kav tau sim ua raws cov qauv ntawm BS1139, En39, GB / T 3091 & GB / T13793, thiab lwm yam.
Cov txiaj ntsig ntawm Ringlock Scaffolding
Lub Ringlock Scafflock muaj koj qib siab ntawm kev hloov pauv thiab versatility
Nrog lub ringlock modular scaffold, koj tsis tuaj yeem teeb tsa ntau cov ces kaum tib lub sijhawm nrog tsuas yog ib qho kev sib txuas tau, tab sis nws tseem muaj tshwj xeeb rau koj. Piv txwv li, nrog Scaffolding cov khoom koj tsis tuaj yeem tsim cov complex scaffolding, tab sis kuj ru tsev nrog spans txog 40 metring, shoring lossis kev tsim kho chaw. Yog li kev nqis peev them tawm ntau zaus dhau.
Txo lub sijhawm ua haujlwm thiab cov yuam kev thaum lub sijhawm Scaffold
Ib qho ntawm cov tub ntxhais zoo ntawm lub ringlock scaffolding hom yog cov ceev nrawm thiab ua rau lub sijhawm ua haujlwm. LEDgers thiab cov kab pheeb ces tej zaum yuav kho tau rau Rosette Connector nrog tsuas yog ob peb rab rauj blows. Qhov no tsis tsuas yog txuag sijhawm, tab sis kuj tseem ua haujlwm. Thiab qhov no siv tsis yog rau kev sib dhos scaffold thiab dismantling tab sis kuj rau kev saib xyuas cov haujlwm xws li kev ntxuav cov khoom. Qhov no yog yooj yim tshwj xeeb thiab ua tsaug sai rau cov tiaj tiaj ntawm Rosette Connector. Nyob rau tib lub sijhawm, ib tug ringlock modular scaffold yog tsis tshua yuam kev - heev tshaj li cov tsoos tsho thiab clamp, vim yog cov ntsiab lus ua ntej. Yog li koj tau txais scaffold muaj kev nyab xeeb nrog kev siv zog tsawg dua.
Koj tsis tuaj yeem tsuas yog sib sau ua ke thiab rhuav tshem cov nplhaib sib dhos sai sai, tab sis kuj tau khaws nws hauv qhov chaw - kev txuag txoj kev
Lub Ringlock kev twb kev txuas tsis tsuas yog tso cai rau koj los ua erect thiab dismantle koj li kev sau ntawv, tab sis koj tsis tas yuav txhawj txog tias yuav ua li cas khaws cia thiab thauj cov khoom siv scaffolding. Hauv qhov kev hwm no, koj tau txais txiaj ntsig los ntawm qhov tseeb tias ib qho scaffold scaffold zoo li muaj tsuas yog qee tus neeg. Lawv kuj tau tsim nyob rau hauv txoj kev uas lawv tau yooj yim tshwj xeeb rau pawg. Cov neeg tsis raug rau sab nraud ntawm lub rosette kuj paub tseeb tias qhov uprights tsis tuaj yeem muab tau yooj yim.
Lub suab nrov scafflock yog tsim los bear high loads
Txawm hais tias txhua yam tau txais me ntsis ntxhib ntawm lub chaw tsim kho, koj tsis tas yuav txhawj txog koj qhov scaffolding. Tsis yog tsuas yog scaffolding khoom kub - dip galvanized thiab yog li tshwj xeeb li qhov muaj peev xwm ib puag ncig kuj tseem muaj tshwj xeeb. Ib Scaffold tuaj yeem ua rau 6 kn ib M2. Qhov no tsis txhais tau tias ntau rau txhua tus neeg uas tsis tau ua tiav qib siab hauv Physics. Hauv kev xyaum, qhov no txhais tau tias koj tuaj yeem khaws cov khoom hnyav xws li prefab uas ua kom cov ntaub ntawv hauv koj cov scaffolding. Vim tias qhov kev thauj khoom no - cov kabmob muaj peev xwm, kuj yog siv los ua kev daws teeb meem.
Sib tov kev pom zoo rau kev yooj yim dua
Lub Ringlock kev sib txuas txoj kev sib txuas yog cia li nrov ntawm scaffolders. Yog vim li cas muaj ntau cov tuam ntxhab rau hom scaffolding ntawm kev ua lag luam. Yog tias koj xav ua haujlwm tshwj xeeb kev lag luam thaum seem uas yooj yim, koj yuav tsum tau txais kev pom zoo rau kev sib xyaw nrog cov khoom siv scaffolding los ntawm cov chaw tsim khoom sib txawv. Piv txwv li, koj tuaj yeem sib xyaw cov khoom nrog peb lwm lub tshuab tsis muaj kev txaj muag, vim nws tau pom zoo. Koj tuaj yeem siv txog ob lub tshuab scaffolding nyob rau tib lub sijhawm ua ke nrog cov khoom siv tsis tas yuav muaj kev txheeb xyuas cov txheej txheem. Koj tuaj yeem nyeem ntxiv txog qhov zoo ntawm modular scaffolding nrog kev sib xyaw ua ke hauv peb tsab xov xwm blog ntawm cov ncauj lus no.
Yuav ua li cas koj thiaj li paub tseeb tshuaj xyuas cov scaffolling ua ntej siv?
Leej twg yuav tsum tau tshawb xyuas scaffolding?
Raws li OSHA, Ringlock Scaffolding yuav tsum tau kuaj los ntawm tus neeg muaj peev xwm ua ntej txhua txoj haujlwm ua haujlwm, xws li huab cua kev ncaj ncees, xws li muaj kev sib raug zoo, lossis kev hloov pauv. Tus neeg muaj peev xwm yog ib tus neeg uas muaj kev cob qhia, kev paub, thiab cov cai los txheeb xyuas thiab muaj kev phom sij uas cuam tshuam nrog scaffolding. Tus neeg no yuav tsum paub nrog cov scaffolding specifications, thauj cov cuab yeej siv, thiab erection thiab cov txheej txheem ua kom tsis txhob ua. Yog tias koj tsis yog tus neeg muaj peev xwm, koj yuav tsum tsis txhob tshuaj ntsuam xyuas scaffolding lossis siv nws kom txog thaum nws tau kuaj xyuas thiab pom zoo los ntawm ib qho.
Koj yuav tsum saib dab tsi thaum kuaj xyuas scaffolding?
Thaum kuaj xyuas lub ringlocking saffolding, muaj ntau yam thiab cov khoom siv los txiav txim siab, raws li hom, qauv tsim, thiab kev teeb tsa. Feem ntau, koj yuav tsum txheeb xyuas tias lub hauv paus thiab lub hauv paus yog qib, ruaj khov, thiab txhawb nqa los ntawm cov ko taw lossis kev sib tw; Scaffold yog tsa thiab braced raws li cov lus qhia; Nws yog tsawg kawg 10 feet ntawm cov kab hluav taws xob; Nws tau tiv thaiv, nruab nrab, thiab cov toeboards ntawm txhua qhov chaw qhib thiab xaus; Nws muaj tus ntaiv muaj kev nyab xeeb, ntaiv lossis nruab nrab; lub decking yog ua tiav nrog tsis muaj qhov khoob lossis protrusions; Tsis muaj kev puas tsuaj, puas, lossis qhov chaw ploj; Tsis muaj lub nra ntau heev lossis cov khib nyiab; Thiab nws muaj cov cim npe meej lossis cov ntawv cim qhia txog nws cov xwm txheej.
Yuav ua li cas koj cov ntawv thiab txuas lus koj txoj kev kuaj xyuas?
Tom qab kuaj xyuas scaffock scaffolding, koj yuav tsum sau tseg koj cov kev tshawb pom thiab kev pom zoo hauv daim ntawv sau sau lossis cav, nrog rau ntawm cov scaffold cim npe lossis cov ntawv cim. Koj yuav tsum muaj hnub tim, lub sijhawm, hom chaw, thiab cov kev mob ntawm scaffold, raws li lub npe thiab kos npe ntawm tus neeg muaj peev xwm uas tau kuaj xyuas. Koj kuj yuav tsum tau cia txhua yam phom sij, tsis xws luag, lossis kev ua txhaum cai uas koj tau txheeb thiab kho lossis qhia. Koj yuav tsum khaws cov ntaub ntawv tshuaj xyuas tsawg kawg ib xyoos lossis kom txog thaum Scaffold yog rhuav tshem.
Koj yuav tsum tau sib txuas lus rau cov neeg ua haujlwm soj ntsuam uas siv Scaffold uas siv cov scaffold, thiab rau tus thawj saib xyuas lossis tus thawj coj ntawm lub phiaj xwm. Koj yuav tsum qhia rau lawv ntawm Scaffold cov xwm txheej, txhua qhov kev txwv lossis cov kev txwv, thiab kev ceev faj lossis cov lus qhia uas lawv yuav tsum ua raws. Koj yuav tsum hloov lawv cov kev hloov pauv lossis xwm txheej uas cuam tshuam rau scaffold kev nyab xeeb lossis kev ua tau zoo.
Cov txiaj ntsig ntawm kev tshawb xyuas scaffolding ua ntej siv?
Tshawb xyuas kev ua yeeb yaj kiab ringlock ua ntej siv tsis yog tsuas yog kev cai lij choj kev cai lij choj, tab sis kuj yog ib qho kev coj ua zoo uas tuaj yeem nqa ntau cov txiaj ntsig rau koj lub chaw ua haujlwm. Qhov no suav nrog kev tiv thaiv kev sib tsoo thiab kev raug mob, tiv thaiv cov neeg ua haujlwm noj qab haus huv thiab kev nyab xeeb, txuag lub sijhawm zoo thiab ua haujlwm zoo ntawm koj txoj haujlwm. Los soj ntsuam scaffolding, koj tuaj yeem ntes thiab txhim kho teeb meem ua ntej lawv yuav ua rau muaj kev puas tsuaj, kom ntseeg tau tias yog qhov tsim nyog thiab ua haujlwm rau koj cov kev xav tau.
Dab tsi yog qee qhov kev coj ua zoo tshaj plaws rau kev soj ntsuam scaffolding ua ntej siv?
Txhawm rau kom ntseeg tau tias koj soj ntsuam Ringlock scaffolding ua ntej siv tau zoo thiab xwm yeem, koj yuav tsum npaj thiab teem sijhawm tshuaj xyuas ua ntej lub sijhawm. Siv cov ntawv txheeb lossis daim foos uas npog tag nrho cov khoom lag luam uas cuam tshuam thiab cov qauv rau koj hom scaffold thiab kev teeb tsa. Muaj cov cuab yeej tsim nyog thiab cov cuab yeej siv rau koj tshuaj xyuas, xws li daim kab xev ntsuas, qib, rauj, teeb meem, thiab lub koob yees duab. Nws muaj txiaj ntsig zoo ua haujlwm hauv khub lossis pawg los tshawb xyuas cov ntu sib txawv lossis cov ntu ntawm scaffold ib txhij lossis ua ntu zus. Ib qho ntxiv, tshaj tawm thiab kho cov xwm txheej lossis tsis meej lossis sai li sai tau. Thaum kawg, tshuaj xyuas thiab hloov kho koj cov ntaub ntawv kuaj thiab cov cim npe tsis tu ncua thiab muaj tseeb.
Yuav ua li cas daws teeb meem kev ua txhaum lossis puas ringlock kev scaffolding?
Tom qab nrhiav kev ua yuam kev lossis cov khoom puas ntawm koj lub ringlocking, tej zaum koj yuav xav paub dab tsi koj tuaj yeem ua ntxiv mus. Yog tias muaj kev puas tsuaj dav dav, cov ntu no yuav tau hloov, lossis nws yuav yog lub sijhawm los yuav ib qho tshiab ringlock scaffolding teeb. Txwv tsis pub, koj kuj tseem tuaj yeem ua cov hauv qab no:
Downgrade -Koj tuaj yeem xaiv ib feem rau lwm txoj kev siv yog qhov ua txhaum lossis kev puas tsuaj tsis cuam tshuam rau tag nrho ib feem. Piv txwv li, qhov tsis txaus ntseeg lossis sib ntaus sib tua hlau tuaj yeem raug txiav thiab kho mus rau hauv lub sawb.
Scrapping -Yog hais tias downgrading tsis muaj peev xwm ua tau, koj kuj tuaj yeem muaj cov seem scrapped.
Kho -Qee qhov kev ua txhaum tuaj yeem kho, uas txo qhov xav tau ntawm kev hloov chaw. Piv txwv li, vuam, rov ua {{- binding, thiab lwm txoj kev tuaj yeem siv los ua kom haum qhov yuam kev ib feem thiab ua rau lawv haum rau siv dua.
Txo qhov ntev -Qhov chaw kuj tseem tuaj yeem txiav thiab ua kom zoo dua. Piv txwv li, lub raj faulty tuaj yeem raug txiav kom tshem tawm cov puas tas.
Ib qho Ringlock Scaffolding rau txhua yam koj xav tau
Ntiv nplhaib - phoo scaffolding tshuab muab cov versatility unmatility rau koj cov kev xav tau.
Kho tau thiab rov ua haujlwm
Cov Cheebtsam sib cuam tshuam ntawm lub nplhaib {{0} Click 0} Xauv Scaffolding tuaj yeem yooj yim sib sau thiab kho kom haum rau cov haujlwm tshwj xeeb ntawm ib txoj haujlwm. Thaum cov qauv, kuj tseem tuaj yeem rov qab tau txais kev hloov kho sai los yog kev sib txuas ntxiv cov kab rov tav thiab platform kom hloov kho qhov chaw ua haujlwm lossis ua haujlwm. Qhov kev hloov pauv no tso cai rau ib lub nplhaib {{3} Peuter System los pab ntau lub hom phiaj, txo qhov xav tau nqis peev rau kev siv tshwj xeeb thiab txwv.
Rau txhua qhov siab thiab loads
Ntiv nplhaib - phoo scaffolding haum ntau qhov siab, los ntawm ib theem platform ntau dua 200 fim. Lub nplhaib puag - xauv cov twj sib txuas kuj tseem ntsuas los tuav cov khoom tseem ceeb, nce txog 7,000 phaus ib qho txuas. Qhov no txhais tau hais tias lub nplhaib - xauv tshuab tuaj yeem txhawb nqa hnyav {} Lub luag haujlwm xav tau kev tsim kho feem ntau. Qhov muaj zog, kev nyab xeeb sib txuas ntawm cov cheebtsam muaj lub zog siab {10} {{qhov hnyav piv, ua rau muaj kev sib tw thiab tawv.
Muaj kev nyab xeeb thiab ua raws
Qhov yooj yim ntawm lub nplhaib - xauv xauv kuj ua rau lawv muaj kev nyab xeeb. Lub rings interlocking yog ib qho yooj yim sib dhos thiab dismantle, txo qhov kev pheej hmoo ntawm kev teeb tsa tsis muaj kev cuam tshuam tsis yog. Ntiv nplhaib {{3} Clicking} Xauv Scaffolding ntsib lossis tshaj qhov kev nyab xeeb qauv teeb tsa los ntawm OSHA thiab Ansi thaum tau txhim tsa. Qhib cov qauv tsim qauv muab cov tsis muaj kev nkag tau thiab pom kev, thaum ua ke ua ke thiab tsis yog - daim ntaub ntawm cov neeg siv kev tiv thaiv.
Ringlock Scaffolding yog qhov hloov tau yooj yim thiab ruaj khov
Construction engineers looking for a system that can be optimised for any facade geometry quickly and safely can rely on the ringlocks. Koj tuaj yeem ua cov xauv ntawm cov ces kaum sib txawv thiab ua kom haum 45 degrees lossis 90-degree cov ces kaum kom raug siv cov ntsiab lus.
Lub ringlock scaffolding suav nrog:
Ntsug posts (qauv).
Kab rov tav cov tswv cuab (LEDgers).
Ringlock braces.
Board nkhaus nkhaus.
Truss ledgers.
Planks.
Lub kaw lus Ringlock tuaj yeem siv tau txuas nrog cov khoom siv zoo li kev vam meej cov nkhaus, hloov, infill, nqaj clamps thiab lwm yam.
Kev Nyab Xeeb: Ringlock Scaffolding Tiv Thaiv Cov Xwm Txheej
Cov nplhaib scaffolding no yog engineered rau kev nyab xeeb tshaj plaws. Lawv cov txheej txheem sib txawv tiv thaiv tsis khov lossis tsis sib haum platform, txo qhov kev pheej hmoo ntawm cov xwm txheej.
Kev Tiv Thaiv Kev Poob
Scaffolding nplhaib - Xauv incorporates cov chaw ua haujlwm thiab cov laug cam uas muab kev ua haujlwm rau txhua lub sijhawm ua haujlwm. Qhov no pab tiv thaiv kev raug mob los ntawm ntog, uas yog kev ua kom tuag rau hauv kev tsim kho.
Kev ruaj ntseg chaw ua haujlwm
Lub nplhaib - Xauv System Tus Qauv Xauv Ua Ke, Tsim Tus Qauv Quav Hlob Tsis Txaus Siab. Tsis muaj ib qho xoob xoob, bolts lossis clips uas tuaj yeem dhau los ua tsis ncaj lossis poob, cov neeg ua haujlwm poob qis hauv qab no. Cov kev sib txuas nrog kev sib txuas nrog kev ntxhov siab ib puag ncig ntawm cua, huab cua thiab siv hnyav.
Qauv thiab muaj ntawv pov thawj
Ntiv nplhaib - phoo scaffold yog tsim tawm raws li cov qauv kev nyab xeeb kom ntseeg tau qhov kev ntseeg tau ntau thiab kev ntseeg siab. Cov Cheebtsam yog hloov kho tau, piv txwv tsis txaus ntseeg thiab cuam tshuam nrog. Ntiv nplhaib - xauv tshuab kuj feem ntau tau raws li lossis tshaj li cov koom haum kev nyab xeeb los ntawm cov koom haum OSHA, pab cov tuam txhab kom muaj kev ua raws cai.
Yooj yim los ua ke
Lub nplhaib - Xauv System Tus Pin Yooj Yim Pin {{1} Kev xauv lock ua kom sib dhos thiab rhuav tshem tau zoo. Cov neeg ua haujlwm tsis txhob nkim sijhawm tshawb nrhiav thiab txuas ntau qhov chaw xoob. Cov thav ntawv sib tham thiab cov platform mus ua ke sai sai, txuag cov nqi. Tsawg daim ntawv xoob yuav txhais tau tias tsawg lub sijhawm rau cov khoom siv tseem ceeb kom ploj, uas tuaj yeem ua rau cov qauv ruaj khov thiab kev nyab xeeb ntawm cov qauv.
Ob peb qhov tseem ceeb ringlock scaffolding cov lus qhia kev nyab xeeb
Siv Kev Tiv Thaiv Caij Nplooj Ntoos Zeeg
Nco ntsoov tias tus neeg zov tus neeg zov muaj nyob hauv qhov chaw thiab muaj kev nyab xeeb. Cov neeg ua haujlwm yuav tsum tau hnav cov cuab yeej tiv thaiv tus kheej, suav nrog cov kaus mom tawv, cov hlua khi thiab lanyards thaum ua haujlwm ntawm qhov siab. OSHA xav kom cov neeg ua haujlwm hnav tag nrho- lub cev muaj lub cev thaum ua haujlwm ntawm kev tshem tawm scaffold ntau dua 10 feet saum toj no.
Ua raws li cov ntawv qhia muaj peev xwm
Nco ntsoov tias tus neeg zov tus neeg zov muaj nyob hauv qhov chaw thiab muaj kev nyab xeeb. Cov neeg ua haujlwm yuav tsum tau hnav cov cuab yeej tiv thaiv tus kheej, suav nrog cov kaus mom tawv, cov hlua khi thiab lanyards thaum ua haujlwm ntawm qhov siab. OSHA xav kom cov neeg ua haujlwm hnav tag nrho- lub cev muaj lub cev thaum ua haujlwm ntawm kev tshem tawm scaffold ntau dua 10 feet saum toj no.
Ua raws li cov ntawv qhia muaj peev xwm
Tsis txhob dhau qhov siab kawg siab thauj khoom muaj peev xwm ntawm scaffold. OSHA hais tias "txhua Scaffold thiab Scaffold Cheebtsam yuav tsum txhawb nqa yam tsis muaj nws tus kheej qhov hnyav thiab tsawg kawg yog npaj siab lossis kis rau nws." Tsis tas li ntawd, nco ntsoov faib cov plaub hnyav thiab tsis dhau ib sab ntawm scaffold.
Xyuas kom meej scaffold yog ruaj ntseg
Cov Scaffold yuav tsum tau txwv los ntawm khi, bracing lossis ib yam dab tsi sib npaug rau cov txhais tau tias. Daim Scaffolds yuav tsum tseem muaj kev ruaj ntseg nrawm rau tus qauv tsim tsev kom tiv thaiv kev txav lossis txhaws. Hais mav, kev sib txuas, thiab kev zawm hniav yog siv los muab kev txhawb nqa ntxiv rau cov neeg ua haujlwm thaum siv scaffoldings los tiv thaiv kev txhaws. Nws yuav tsum tau nruab raws li cov scaffold chaw tsim khoom qhov kev pom zoo lossis thaum lub hauv paus nce mus txog qhov siab sib npaug ntawm 4: 1.
Ua kom muaj chaw muaj kev nyab xeeb
Cov cim ceeb toom yuav tsum muab tso rau ib puag ncig scaffold kom cov neeg ua haujlwm ceeb toom thiab cov neeg taug kev ntawm cov muaj kev phom sij. Ib qho ntxiv, ua kom cov chaw ua haujlwm dawb ntawm cov khib nyiab thiab cov khib nyiab thiab sai sai sai sai uas tuaj yeem ua rau cov pob txha uas nyob ze ntawm scaffold.
Siv Kev Nkag Mus Zoo
Raws li OSHA, cov tswv haujlwm yuav tsum muaj kev nkag tau thaum cov scaffold platforms yog ntau dua ob txhais ko taw saum npoo av lossis qis dua qhov kev nkag mus. Kev nyab xeeb thiab kev nyab xeeb nkag mus siv tus ntaiv lossis ntaiv yuav tsum siv, tsis yog cov khoom xws li thawv lossis lwm yam khoom tsis ruaj khov.
Txhua tus neeg ua haujlwm yuav tsum muaj kev cob qhia ib txwm los ntawm tus neeg tsim nyog los ua kom lawv paub txog kev phom sij thiab to taub li cas txo qis lawv. Kev cob qhia yuav tsum muaj cov kev cob qhia rau cov kev phom sij tshwj xeeb, suav nrog kev txhawj xeeb hluav taws xob, thiab cov khoom siv hluav taws xob kom zoo thiab lis siv tau zoo ib zaug rau nws. Tsuas yog cov neeg ua haujlwm paub yuav tsum raug tso cai siv scaffolling ringlock.
10 OSHA Scaffolding Kev Tshawb Xyuas thiab Siv Cov Txheej Txheem Kev Nyab Xeeb muaj xws li: Cov kab ke poob, cov hlua khi, Maning Ties thiab kev sib tsoo, kev cob qhia thiab kev tshuaj xyuas. Noj cov kev ceev faj no tuaj yeem tiv thaiv cov neeg ua haujlwm sib raug zoo, txo qis qis, thiab txhim kho kev ua haujlwm ntawm kev tsim kho.
Qhov kawg FAQ Lus Qhia rau Ringlock Scaffolding
Q: Dab tsi yog ringlock scaffolding?
Q: Puas yog ringlock scaffolding zoo dua li scaffolding?
Q: Dab tsi yog lub hom phiaj ntawm lub nplhaib scaffolding?
Q: Dab tsi yog qhov tseem ceeb tshaj plaws ntawm ringlock scaffolding?
Q: Cov cai golden ntawm ringlock scaffolding?
Q: Dab tsi qhov siab yog ringlock scaffolding xav tau?
Q: Puas yog koj yuav tsum tau hnav lub sam xauv nees ntawm Ringlock Scaffolding?
Q: Ntawm dab tsi qhov siab yog kev tiv thaiv xav tau ntawm ringlock scaffolding?
Q: Koj ua li cas thiaj paub tseeb ntawm scaffolling?
Q: Koj puas tau tswj xyuas scaffolding li cas?
Dismantle, pawg, thiab khib kom raug.
Siv WD-40 los tiv thaiv xeb thiab tsis zoo.
Cia cov ntoo thiab txav chaw.
Hloov cov kev ua txhaum lossis cov khoom hnav.
Yuav ua li cas daws tau kev ua txhaum lossis puas scaffolding.
Q: Dab tsi yog ntsuab tag ntawm lub ringlock scaffolding txhais tau?
Green txhais tau tias yog scaffolding yog kev nyab xeeb siv. Caj txhais tau tias nws muaj kev nyab xeeb siv, tab sis kev hloov kho tau ua kom cov neeg ua haujlwm yuav tsum paub txog. Liab txhais tau hais tias qhov scaffolding tsis muaj kev nyab xeeb, thiab cov neeg ua haujlwm yuav tsum zam kev siv nws kom txog thaum nws kho lossis hloov.
Q: Txoj kev pom zoo kom tswj kev ruaj khov thaum ua haujlwm ntawm kev ua haujlwm scaffolding?
Q: Dab tsi yog qee cov lus qhia kev nyab xeeb thaum ua haujlwm nrog ringlock scaffolding?
Kev cob qhia rau kev sib dhos scaffolding thiab siv.
Tshuaj xyuas txhua daim Scaffolding Cheebtsam ua ntej siv.
Ua raws li cov chaw tsim khoom lag luam tshwj xeeb.
Nco ntsoov ua scaffolds yog qib thiab ruaj khov.
GuardSrrasns thiab TOE Camts rau Kev Tiv Thaiv Caij Nplooj Ntoos Zeeg.
Tsis muaj overloading scaffold platforms.
Q: Dab tsi yog qhov zoo ntawm cov ringlock scaffolding?
Q: Dab tsi yog qhov ua rau ntawm Ringlock scaffolding tuagalities?
Q: Koj tuaj yeem teeb tsa tau li cas ringlock scaffolding?
Q: Dab tsi yog 3 rau 1 txoj cai hauv ringlock scaffolding?
Q: Koj yuav tsum tsis txhob ua dab tsi hauv Ringlock scaffolding?
Tsis txhob cia cov khoom uas tsis saib xyuas ntawm scaffolding li lawv tuaj yeem poob lossis ua rau muaj kev phom sij rau lwm tus.
Tsis txhob siv daim scaffold tsis yog tias tsis muaj kev puas tsuaj.
Tsis txhob siv scaffolding uas muaj qhov ploj lawm.
Tsis txhob siv scaffolding uas tau plam kev phom sij ntawm nws xws li dej khov, dej lossis av nkos.
Q: Kuv yuav ua li cas ua rau kuv lub ringlock scaffolding ntau ruaj khov?
Q: Koj yuav ua li cas koj thiaj zam dhau lub ringlock scaffolding ua tsis tiav?
