Ringlock System Scaffolding Kev muag khoom
✔ Dav: 48.3mm
Product Description

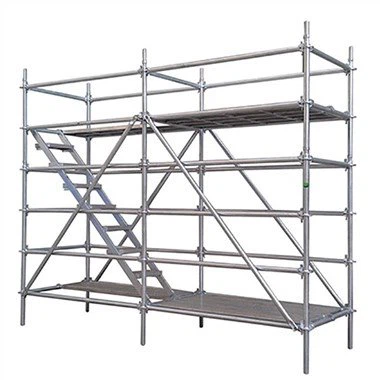

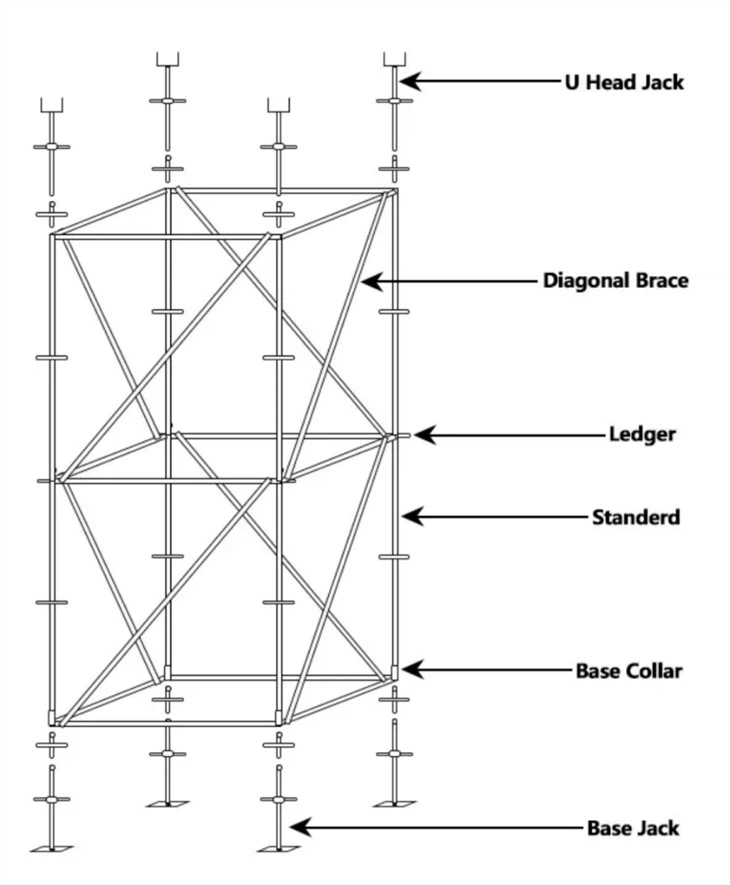

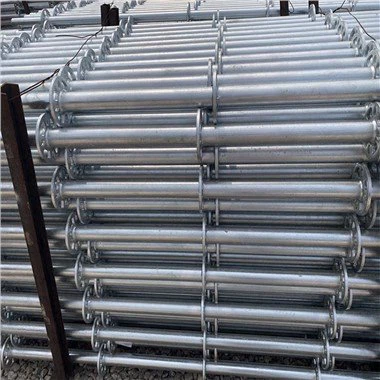

Scaffolding Ringlock System
ringlock system yog ib hom scaffolding uas muaj cov txheej txheem txheej txheem uas tuaj yeem txuas tau yooj yim thiab sib hloov los tsim ntau hom scaffolding.Modular tsim tso cai rau kev sib dhos ceev thiab disassembly.Cov khoom tuaj yeem teeb tsa los tsim ntau yam scaffold. cov qauv, suav nrog kev khiav ncaj, nkhaus, thiab cov ces kaum, kom haum rau qhov sib txawv ntawm qhov yuav tsum tau ua thiab qhov chaw nyob.

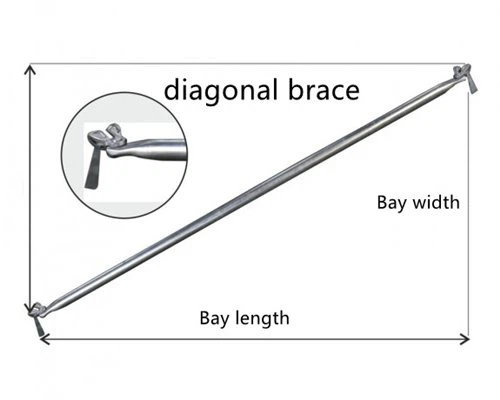

Khoom Specification
|
Yam khoom No. |
Bay ntev |
Bay dav |
Theoretic hnyav |
|
YFDB48 060 |
0.6 m |
1.5 m |
3, 92kg |
|
YFDB48 090 |
0.9 m |
1.5 m |
4.1kg ib |
|
YFDB48 120 |
1.2 m |
1.5 m |
4, 4kg |
|
YFDB48 065 |
0.65 m / 2' 2" |
2.07 m |
7.35 kg / 16.2 lbs |
|
YFDB48 088 |
0.88 m / 2' 10" |
2.15 m |
7.99 kg / 17.58 lbs |
|
YFDB48 115 |
1.15 m / 3' 10" |
2.26 m |
8.53 kg / 18.79 lbs |
|
YFDB48 157 |
1.57 m / 8' 2" |
2.48 m |
9.25 kg / 20.35 lbs |
Ob chav / Truss / choj / Reinforce ledger
Khoom siv: Q235 Hlau / Nto kho: Kub dipped galvanized
Dimensions: Φ42 * 2.75 hli lossis customized los ntawm cov neeg siv khoom
|
Yam khoom No. |
Ntev |
Qhov hnyav |
|
YFTL48 157 |
1.57 m / 5'2" |
10.1 kg / 22.26 lbs |
|
YFTL48 213 |
2.13 m / 7' |
16.1 kg / 35.43 lbs |
|
YFTL48 305 |
2.13 m /10' |
24 kg / 52.79 lbs |

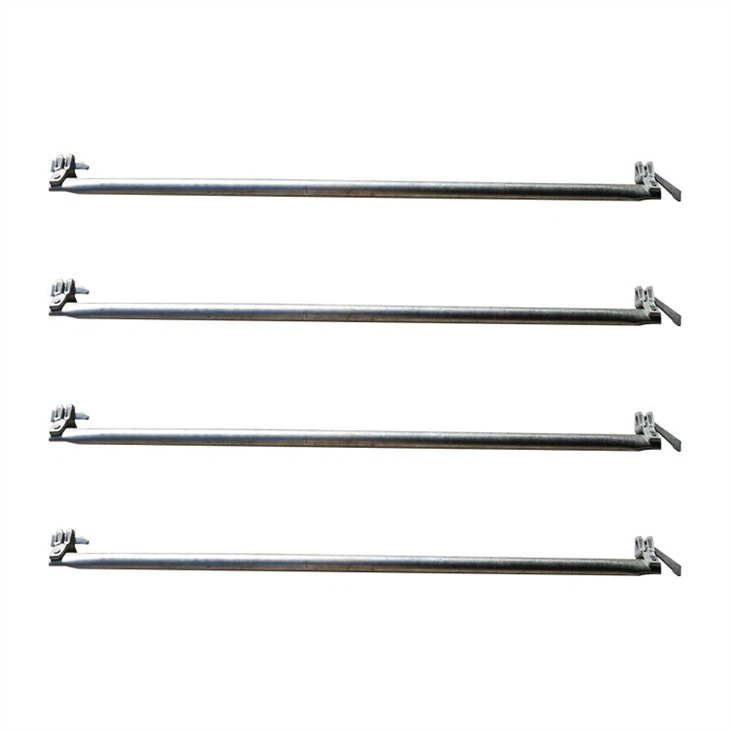

Intermediate Transom
Q235 Kub dip galvanized 48.3 * 3 hli
|
Yam khoom No. |
Ntev |
Qhov hnyav |
|
YFIT48 115 |
1.15 m / 3'10" |
5.36 kg / 11.78 lbs |
|
YFIT48 213 |
2.13 m / 7' |
8.91 kg / 19.6 lbs |
|
YFIT48 305 |
3.05 m / 10' |
12.2 kg / 26.85 lbs |
Trussed Beam / Lattice Girder
Q235 Kub dip galvanized 48.3 * 3 hli
|
Yam khoom No. |
Ntev |
Qhov hnyav |
|
YFTB48 517 |
5.17 m / 17' |
70.47 kg / 115.03 lbs |
|
YFTB48 614 |
6.14 m / 20'2" |
82.63 kg / 181.79 lbs |
|
YFTB48 771 |
7.71 m / 25'3' |
103.76 kg / 228.26 lbs |
Sab bracket / board bracket
Nto: Kub dipped galvanized
Loj: 48.3 * 3mm
Khoom siv: Q235
|
Yam khoom No. |
Ntev |
Qhov hnyav |
|
YFSB48 065 |
0.65 m / 2'2" |
6.61 kg / 14.54 lbs |
|
YFSB48 088 |
0.88 m / 2'10" |
8.62 kg / 18.96 lbs |

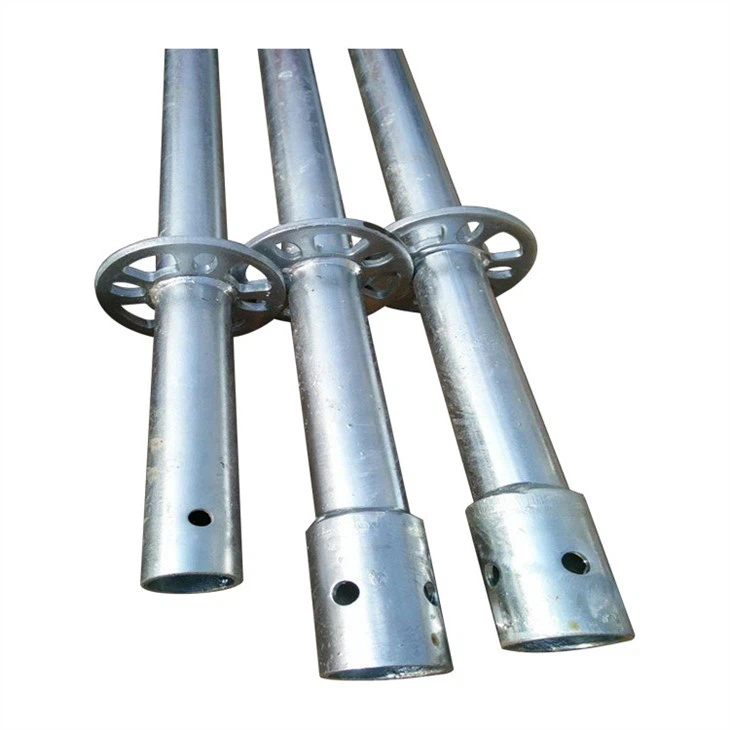

Base dab tshos
Kev kho deg: Kub dipped galvanized
|
Yam khoom No. |
Dimension |
Ntev |
|
YFBC48 024 |
Q235, φ48.3 * 3mm |
0.24 m / 9.4" |
|
YFBC48 030 |
Q235, φ48.3 * 3mm |
0.30 m / 11.8" |
|
YFBC48 028 |
Q345, φ57 * 3.5 hli |
0.28 m / 11" |
|
YFBC48 037 |
Q345, φ70 * 3.5mm |
0.37 m / 14.57" |
